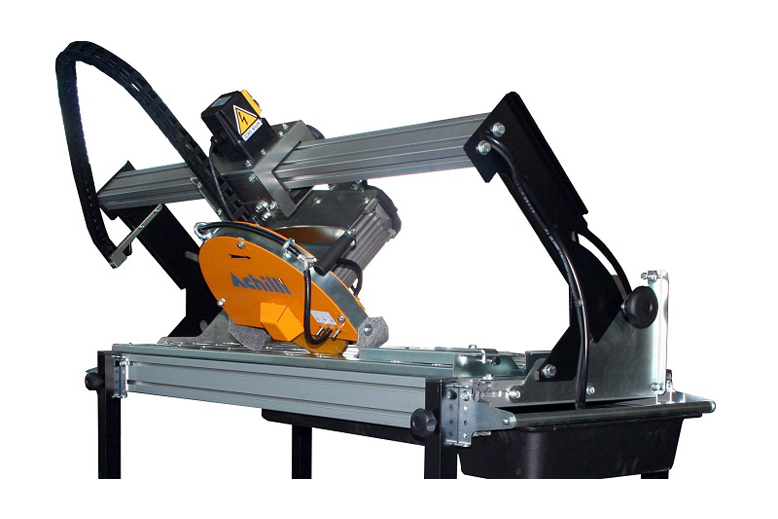

Sturdy and accurate saw, suitable for straight and tilted cutting of bricks, tiles, concrete and natural stone. Aluminum structure to facilitate transportation and maximize resistance to rust and corrosion.
Advantages:
Frame and beam made of aluminum draw-plate.
Removable water tank made of crash and consumption-proof material.
Handles and folding legs to facilitate transportation.
Features:
Work table made of galvanized steel rails with service square Frame and beam made of aluminum drawplate.
The carriage motor group moves on 12 sealed ball bearings of wich 8 work always on the horizontal surface and 4 on the vertical surface.

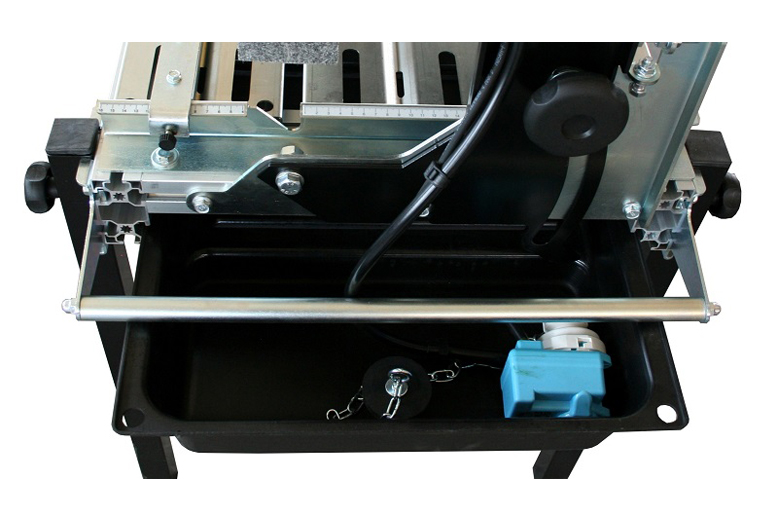

Removable water tank made of ABS crash and consumption proof. Itโs easy to clean and studied to divide the sludge from the recycling waterโs area.
Built-in recycling pump included to cool the disk during cutting.
Manual bridge tilt for cutting from 90 to 45 degrees.
The wiring of the cables is integrated inside the e-chain to avoid any interferences in the working area. Long side handle and folding legs to facilitate transportation.
Manual cutting depth adjustment by โplungeโ mechanism. Manual head feed, available with useful cut: 600, 800, 1000, 1300, 1500 mm.
